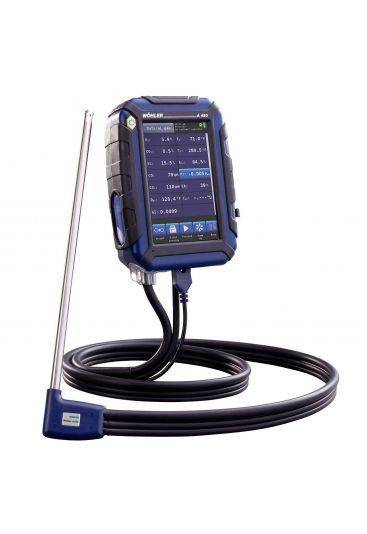

Wöhler A 450 L Combustion Analyzer
Wöhler A 450 L Combustion Analyzer
Wöhler A 450 L Combustion Analyzer
    Wöhler A 450 L Combustion Analyzer
    Wöhler A 450 L Combustion Analyzer
    Wöhler A 450 L Combustion Analyzer
    Wöhler A 450 L Combustion Analyzer

    Woehler
    Analyzers

    A flue gas analyzer that offers all measurement and tuning functions. A small and lightweight flue gas analyzer enclosed in an eye-catching, sturdy housing. The Wöhler A 450 L is a handheld device with user friendly touchscreen control, displays all measurement data on screen or connect and view on your smart devices.
    Android iOS
    24 month warranty
    Large 5" color touchscreen
    Displays up to 14 measurement readings
    Simple to use
    Intuitive to operate via on-screen keyboard
    Condensate protection
    Multistage filter technology incl. water stop filter
    from $2,064.00 Price excl. Tax
    Please note: As soon as you watch the video, information about it is transmitted to YouTube. You can find more information about this under read more

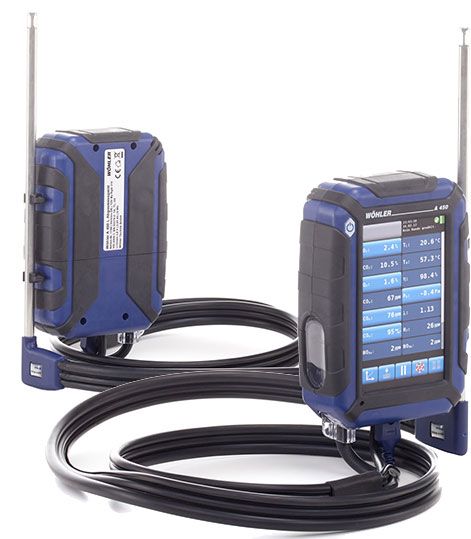

    [Translate to United States:] Wöhler A 450 L Produktvergleich
    1) O2 sensor 48 months, CO sensors 5,000 ppm 24 months; excludes thermocouples, rechargeable battery and optional NO sensor. For more information see our Terms and Conditions.
    Product Comparison
     Wöhler
    A 450 L    		Wöhler
    A 450

    Sensor and analyzer warranty1)24 month48 month
    CO sensor5,000 ppm10,000 ppm
    O2 sensor0,0 ... 21,0 vol.-%0,0 ... 21,0 vol.-%
    Sensor replacement
    Burner adjustment assistant
    Setting tasks gas /oil systems
    Wireless LAN, infrared, USB
    Rechargeable lithium ion batteryUp to 6 h operating timeUp to 6 h operating time
    NO-Sensoroptionaloptional
    Possible sensors33



    All properties
    24 month warranty

    Large 5" color touchscreen

    Displays up to 14 measurement readings

    Simple to use

    Intuitive to operate via on-screen keyboard

    Condensate protection

    Multistage filter technology incl. water stop filter

    Flue Gas Analysis App

    Data transmission

    By USB, Wireless LAN or infrared

    Speicherung im Gerät

    Von 1.000 Messdatensätze

    Rechargeable battery

    Operating time: more than 6 h with lithium ion power

    Sets
    Wöhler A 450 L Combustion Analyzer
    Wöhler A 450 L Combustion Analyzer
    Wöhler A 450 L Combustion Analyzer
    Advanced Set - 5,000 ppm
    Item no. 8177
    Available within one week, New Goods
    $2,146.00
    Price plus VAT and shipping
    Wöhler A 450 L Combustion Analyser
    Wöhler A 450 L Combustion Analyser
    Basic Set - 5,000 ppm
    Item no. 8174
    Available within one week, New Goods
    $2,064.00
    Price plus VAT and shipping
    Related products
    Thermal Paper
    Thermal Paper
    for Wohler TD 100 Thermal Fast Printer
    Item no. 4145
    Water Stop Filters 3 pcs.
    Water Stop Filters 3 pcs.
    for Wohler A 450 / 550
    Item no. 9621
    Probe 10" and Hose 5 ft Assembly
    Probe 10" and Hose 5 ft Assembly
    for Wohler A 450
    Item no. 4498
    Wöhler TD 100 Thermal Fast Printer
    Wöhler TD 100 Thermal Fast Printer
    incl. thermal paper and batteries
    Item no. 4160
    Clamping Cone
    Clamping Cone
    for probes 0.3"
    Item no. 2494
    Coarse Filters 5 pcs.
    Coarse Filters 5 pcs.
    for Wohler A 450 / 550
    Item no. 9632
    Threaded Cone stainless steel
    Threaded Cone stainless steel
    for probes 0.3"
    Item no. 1235
    O2-Sensor 0…21 Vol. %
    O2-Sensor 0…21 Vol. %
    for Wohler A 450 L / 450
    Item no. 8963
    Plastic Cone
    Plastic Cone
    for probes Ø 0.31"
    Item no. 2463
    Wadding Filters 150 pcs.
    Wadding Filters 150 pcs.
    for Wohler A 450 / 550
    Item no. 4288
    Thermal Paper, self-adhesive
    Thermal Paper, self-adhesive
    5 rolls, for Wöhler TD 100
    Item no. 14145
    Charger
    Charger
    for Wohler A 450 / A 550 / L 200
    Item no. 5502
    Air Temperature Plug
    Air Temperature Plug
    Wohler A 450 / A 550
    Item no. 5517
    Backpack
    Backpack
    for Wöhler A 450 / 550
    Item no. 5101

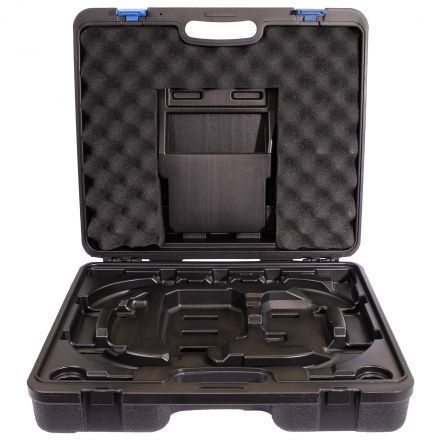

    Plastic Case MIDI
    Plastic Case MIDI
    for Wohler A 450 L
    Item no. 6594
    Wadding Filters 25 pcs.
    Wadding Filters 25 pcs.
    for Wohler A 450 / 550
    Item no. 4286
    Penetration Temperature Probe TF4
    Penetration Temperature Probe TF4
    for Wohler A 4xx/5xx/DC 410FLOW/DT 310
    Item no. 6629
    Extension Cable 9.2 ft
    Extension Cable 9.2 ft
    for Wohler A 450 / 550
    Item no. 7772
    Surface Temperature Probe TF1
    Surface Temperature Probe TF1
    for Wöhler A 4xx/5xx/DC 410FLOW/DT 310
    Item no. 6625
    Extension Cable Hose 5 ft
    Extension Cable Hose 5 ft
    for Wohler A 450 L / 450
    Item no. 2045
    CO-Sensor 5,000 ppm
    CO-Sensor 5,000 ppm
    for Wohler A 450 L
    Item no. 8964
    Flue Gas Temperature Probe TF5
    Flue Gas Temperature Probe TF5
    for Wohler A 4xx/5xx/DC 410FLOW/DT 310
    Item no. 6635
    Downloads
    Wöhler A 450 - Sell-Sheet

    PDF, 863.10 KB
    Wöhler A 450 - Manual

    PDF, 2.38 MB
    Wöhler A 450 Software - Manual

    PDF, 1.61 MB
    Wöhler A 450 App - Manual

    PDF, 527.06 KB
    Wöhler A 450 - Technical Data

    PDF, 50.71 KB
    Adjust Gas Pressure On A Furnace
    Further topics:

    In order to properly adjust and / or maintain a residential gas furnace, a manometer is needed. Digital manometers are prefers as opposed to U-Tube variations, due to the readout display. A manometer can read the incoming pressure of gas in a gas fired unit. Some combustion analyzers, such as the Wöhler A 450, also offer the feature of measuring the gas pressure.
